ANTOOTAN WOWSTICK 1p
The scope of use of this type of precision electric screwdriver: for individual users: DIY or disassemble or repair mobile phone digital flat glasses camera notebooks and other electronic digital products. For these small and medium-size equipment. Not suitable for dismantling large size equipment screws, the design purpose is very clear. (In addition, some of the equipment screws are tightened in the initial state of drunkenness and the screw is in a moment of rushing. It requires a very large torque, you can hold down the electric button and manually operate the screwdriver at the same time).
The original design idea:
the design of a portable compact precision electric screwdriver, you can disassemble the usual mobile digital electronics and other small and medium-size equipment screws, because these devices screw itself is small. The smaller the screws, the less force is tolerated. If the speed is too fast and the force is too great, it can easily lead to slipping. Therefore, the traditional plug-in screwdrivers and pistol-type electric screwdrivers are not suitable for the demolition of this small and medium-sized precision equipment, excessive intensity, too fast, it is easy to cause the screw to slide the screw or breakdown circuit board. Disassembly of these small and medium size precision equipment, safety is more important, and this is the speed is 1 minute / 150 speed, personal DIY efficiency is sufficient. And this size is a very portable design, very comfortable grip sense, operability is very strong, easy to carry.

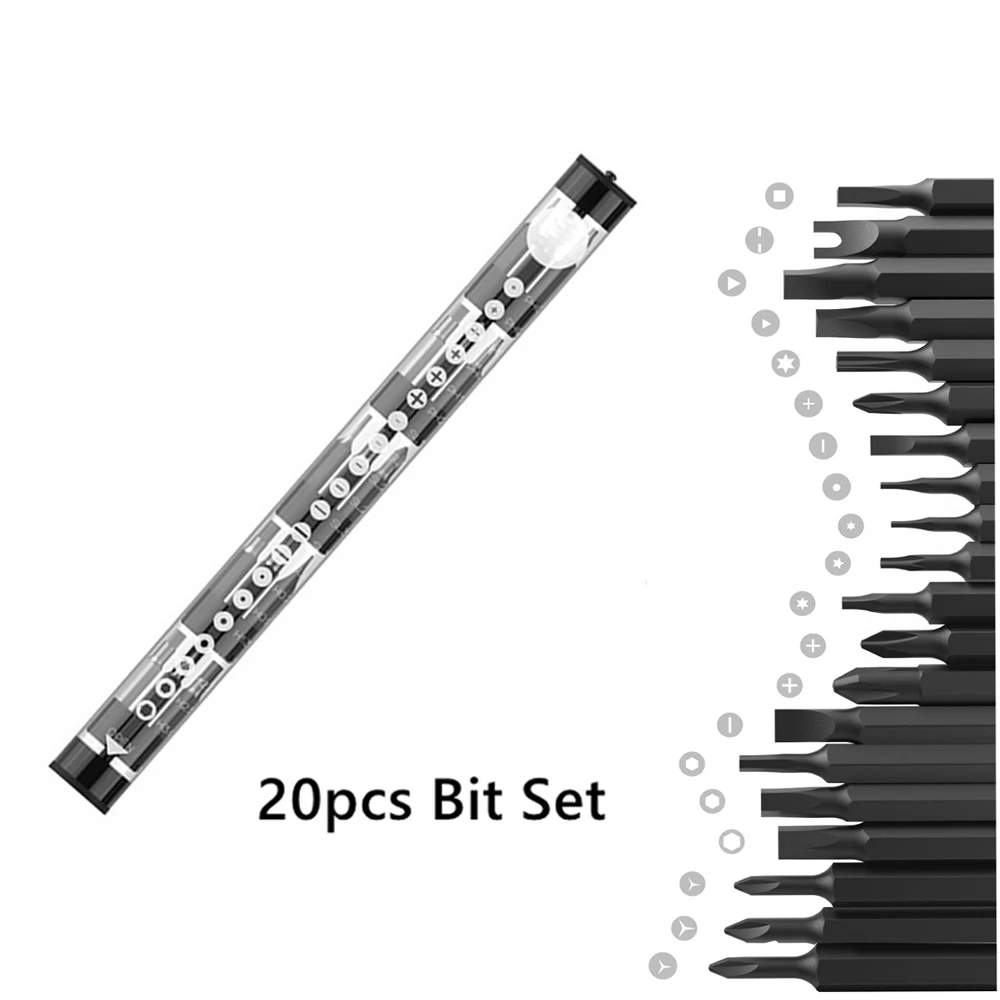

18 bites specifications are as follows:
Cross: PH000 (cross 1.5) PH0 (cross 2.0) PH2 (cross 5.0) Word: 1.0mm 2.0mm 3.0mm
Hexagon: T5 T6 T8 Five-star: P2 (five-star 0.8) P5 (five-star 1.2) P6 (five-star 1.5) Hexagon: H2.5 H3.0
Square: SQ0 Triangle: 3.0 Y: Y2.5 U: U3.0
Probably the first batch of dismantling machine range:
Five-star 0.8: Remove the Apple mobile phone 4 4S 5 5C 5S 6 6PLUS 6S 6SPLUS 7 7PLUS 8 8PLUS X Use the bottom five-star screws.
Five-star 1.2: Remove the bottom five-star screws from the Apple AIR PRO notebook.
PH000 is Cross 1.5: Remove all mobile Phillips screws.
PH0 is also a cross 2.0: split the bottom of the notebook and cross the use of toys.
PH2 is also cross 5.0: Phillips desktop computer screws.
Word 1.0 2.0 3.0: Demolition of some electronic digital products with screws.
Hexagon T5 T6: Remove the hex screws on some notebooks.
Hexagon H2.5 H3.0: demolition UAV, model aircraft and more.
U3.0 triangle 3.0 Y2.5 demolition of small appliances and more.
Manual design, not only can be the electric operation but can also be manually operated, electric and manual can operate independently, can also operate simultaneously (electric screwdriver with a self-locking design, as long as manual operation, the internal self-locking will automatically open to avoid damage Motor, you can rest assured that manual operation)

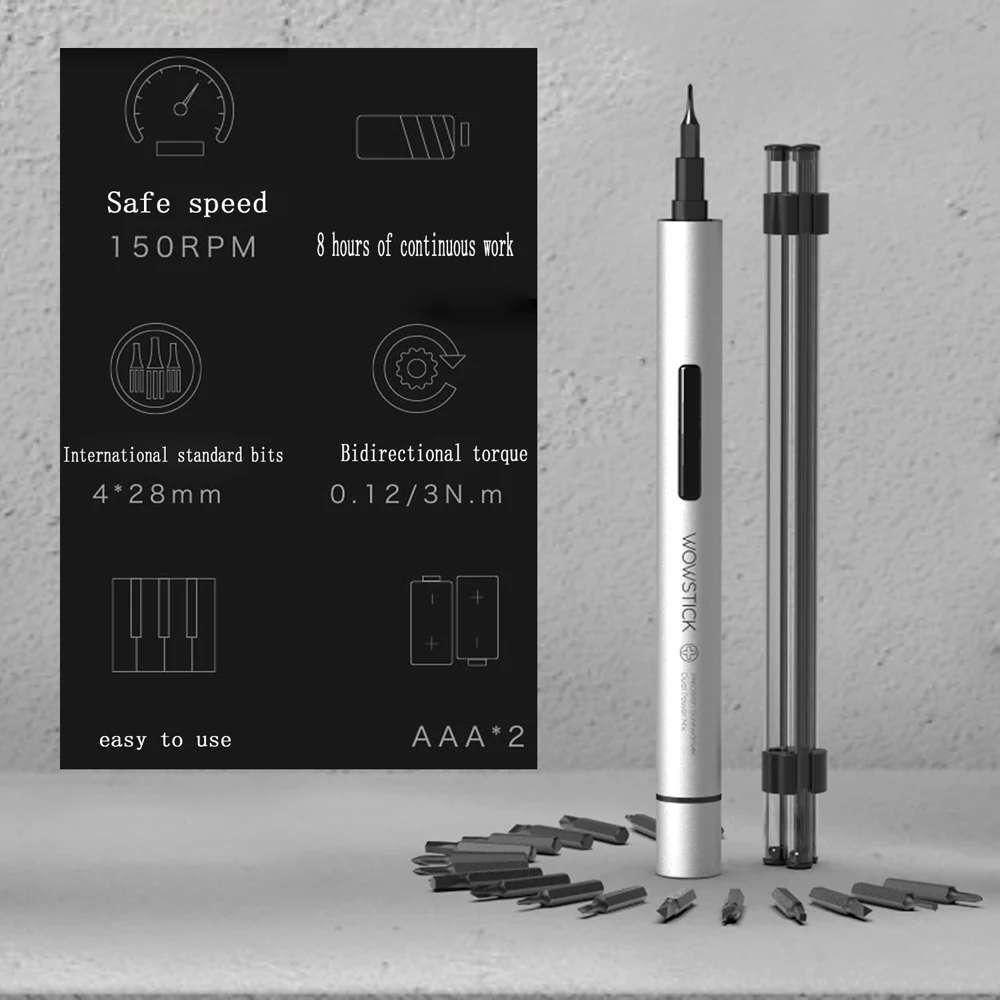

Speed: 1 minute / 150 turn Electric torque peak: 0.12NM Manual torque peak: 3NM
Power supply: 2 No. 7 battery-powered (removable) screwdriver jack: standard 4MM hexagon
Wowstick 1F+ new lithium battery portable electric screwdriver (electric / manual integration design, referred to as hand-integrated design)
1F+ is also the wow stick full range of electric screwdrivers, with the strongest function, the most accessories, the wide range of dismantling, and the strongest practicality. Basically includes the wow stick full range of accessories.
It is not only an electric screwdriver but also a manual screwdriver. Do not ignore manual functions. Because this electric screwdriver has an internal self-locking design, as long as the manual torque screwdriver, internal self-locking will automatically open to avoid damage to the motor, and manual torque can withstand 30KG torque. Enough to meet the daily needs of small and medium-sized equipment. Electric and manual can be operated independently or simultaneously.
1x electric screwdriver,
56x 4mm Screwdriver Bit
1x base (used to erect the screwdriver)
1x white magnetic storage box
1x USB charging cable,
1x triangular disassembled film,
1x magnetic positioning plate,

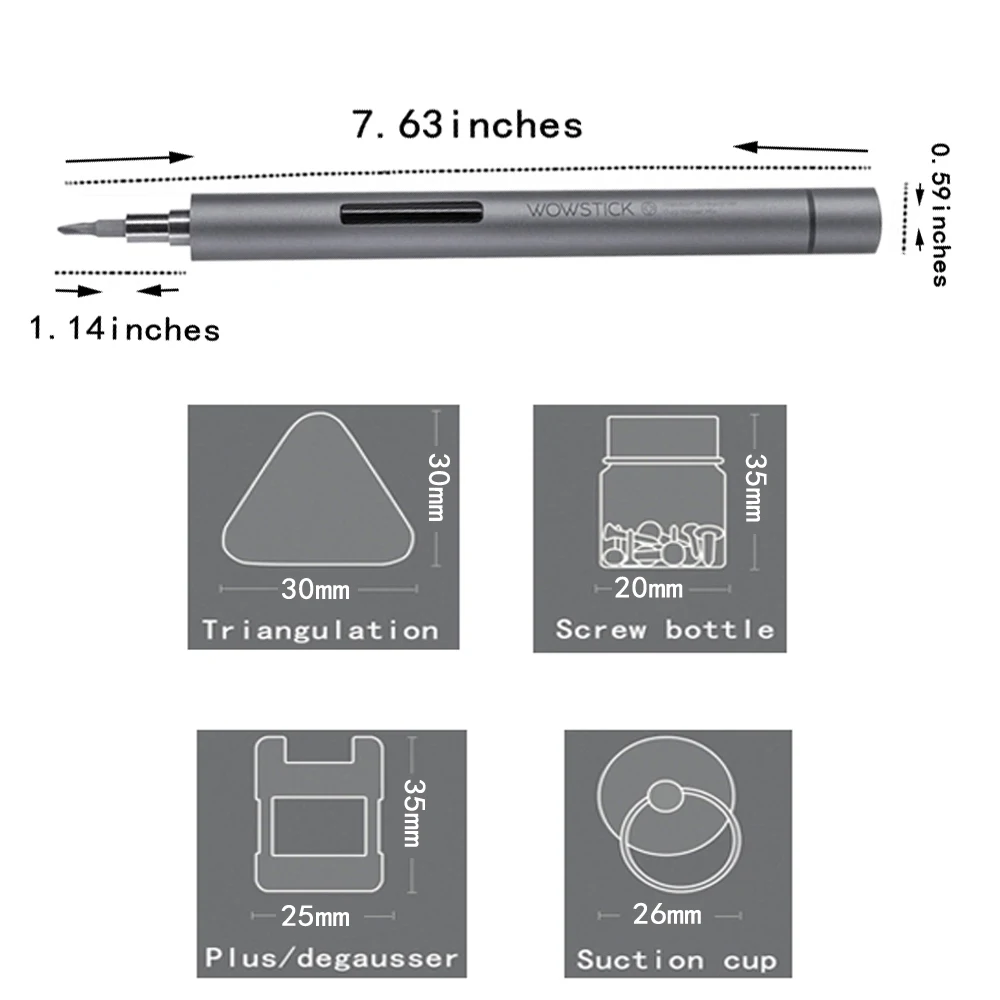

No-load speed = 200 rpm. Electric torque peak = 0.15nm (1.5KG torque). Manual torque peak = 3nm (30KG torque). Built-in lithium battery, used for charging. A key to control the forward and reverse operation is very convenient. With LED lights, the work area is automatically illuminated when the work is reversed. About 2 hours of continuous idle work, the actual average person is intermittent work (the battery can last longer). Charge for about 40 minutes full (charging red light, full of green light). The electric screwdriver has a diameter of 15.8mm and a length of 173mm. The size is appropriate. The operation is as simple and comfortable as a pen, and a thumb can control the forward and reverse rotation. The handle is very good, the handleability is very strong, the volume is portable, and the storage is It is very convenient to carry. And the screwdriver body adopts all-metal design, feels good, durability, exquisite workmanship.

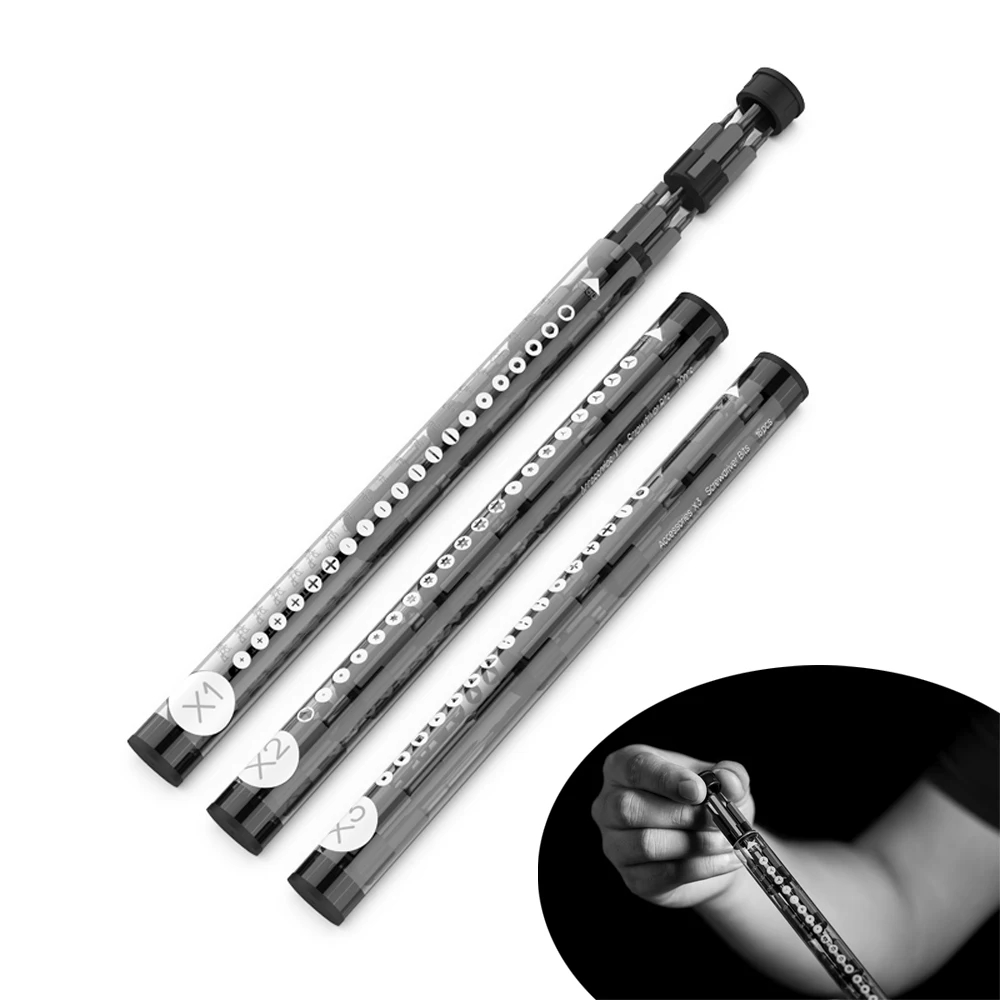

Screwdriver with 56 imported S2 steel bit, basically contains small and medium-sized equipment, commonly used in various forms of the first batch: Crossword hexagon Hexagon five-star U-shaped Y-square triangle thimble plate, the basic size specifications include The practicality is very strong.
Need to be manually twisted, and then use the electric drive. (You can press and hold the button to remove the screw, and you can swing it in the direction of the screw)
Tip: 1P needs to install a battery, 1F is USB charging
